CubeLAN 8 Port Switch Pinout

[Mjg (Manish)]

Hi,

CubeLAN 8 Port Switch pinout need information.
As per CubeLAN 8 Port Switch | CubePilot there is a 8 pin connector but physcially there is a 6 pin only.
Can you please share the pinout for that so that we can use appropriate cables

Thanks
Manish

[NWBlue (Distributor Support)]

Hi Manish,

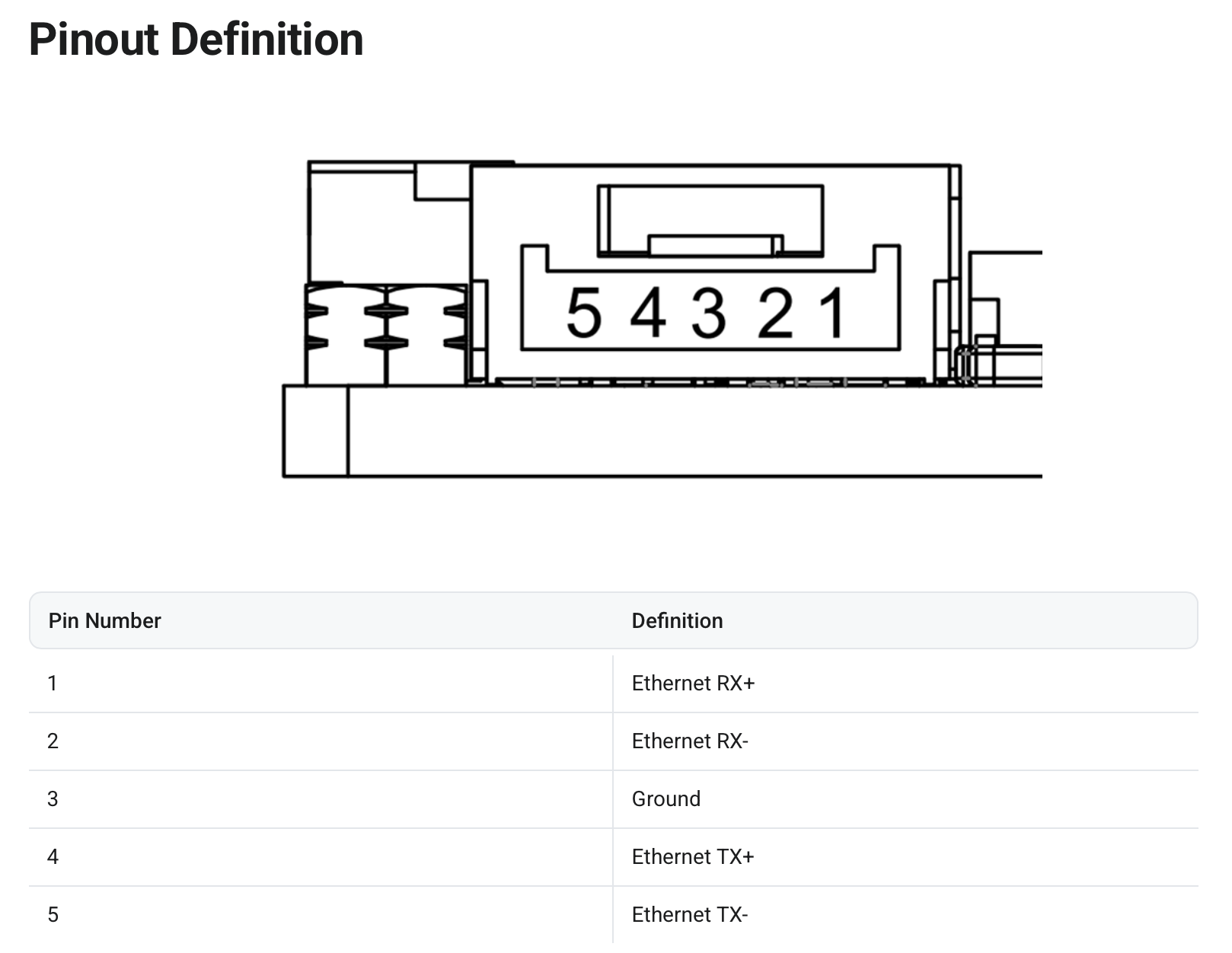

The end connector that is not power should be ignored as it is for dev only. The pinout for the 8 ethernet ports, 4 on each side is attached below.
