DSHOT on PX4 with CubeOrangePlus and Mini Carrier Board

Cube Autopilot
1

Hello,
I would like to configure my DSHOT ESCs to run on the MiniCarrierBoard of my CubeOrangePlus using PX4.
I am using the copter configuration and for PWM it works, but not for DSHOT.
ESC and wiring is perfectly fine because the same setup runs on ardupilot.
I assume that PX4 just doesn’t support it on the minicarrierboard because DHSOT should be configured on the AUX ports which the minicarrierborard does not have. (I follow this manual: https://docs.px4.io/main/en/peripherals/dshot.html)
Is that correct? What can I do about it?

Thank you for your help.
Sam

2

When using PX4, DSHOT only works on the AUX outputs for a Cube.
So you would have to move the connections, and change any other related parameters, such as in the actuator configuration screen

3

So in the case of the Mini Carrier Board, that only has MAIN Outputs, DSHOT is not possible?

4

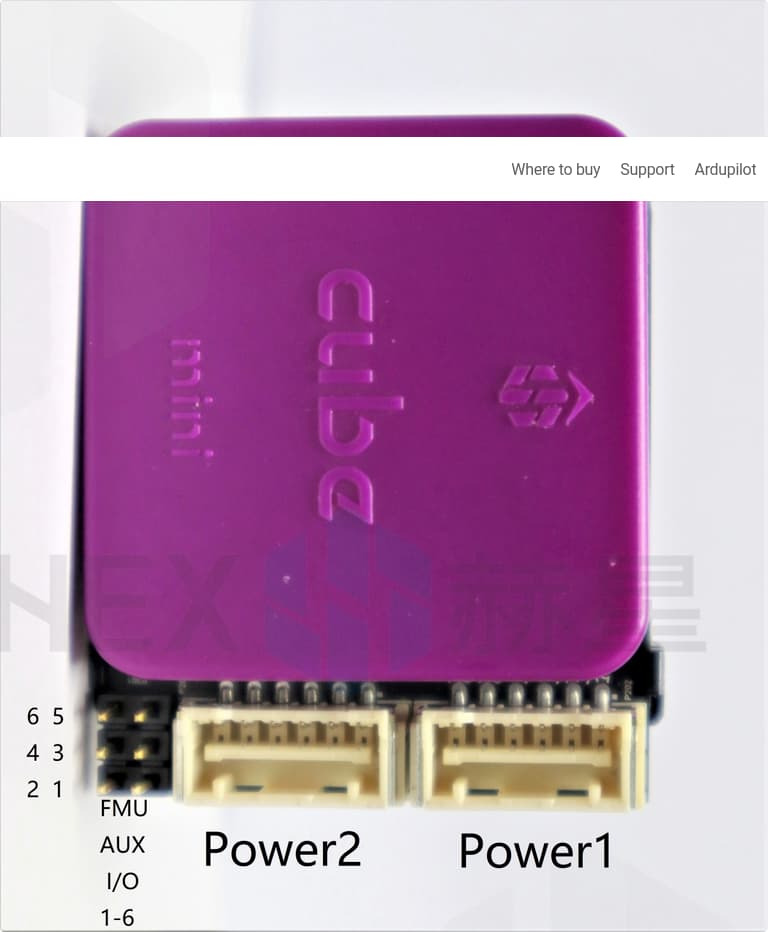

There are AUX outputs on the header pins near Power2

image768×932 36.8 KB

1 Like
5

If I am hooking up my esc to the AUX pins as you showed here, I am assuming that I would just wire motor 1 to AUX 1 and so on?

6

Yes correct, and you also need to connect a ground wire for the ESC signals to some ground pin on the flight controller.
There’ll be a bunch of PX4 parameters you have to change too - check in the PX4 docs or over at px4.io
