How to set parameters for Cube Black and Cube Orange for yaapo telemetry by S.Port

Cube Autopilot
1

Hi can anyone provide me parameters which I have to change to get telemetry by yaapo telemetry script, sport cable from aliexpress, FrSKY Horus X10 express with open TX software and Archer Gr8 receiver… I tried all setings from arducopter wiki but without success.

2

Hi,

the only parameter you need to change is setting Serial1_Protocol to 10 (assuming you are using Telem1).

After a reboot you should get the telemetry data.

3

Sorry but doesn’t work :frowning:

4

Are you using the Telem/UART -> S.Port adapter?

https://www.amazon.com/Telemetry-Converter-Pixhawk-Taranis-Receiver/dp/B07KJFWTCB

5

yes I am using this adapter. Maybe there is something that I can change in Archer GR8 receiver ?

6

It’s supposed to be that S.Port is S.Port, regardless of the RX. Which pin are you using?

image1130×520 53.5 KB

7

Yes I am using this pin and GND on Archer and on Cube side I am using PIN #1 VCC, PIN #2 MCU_TX, PIN #3 MCU_RX, and GND.

8

I think cable is ok. I checked 2 cables and telem 1 and telem 2 port. Images of my test setup:
https://www.aliexpress.com/
https://fotostacja.pl/Archer/1.jpg
https://fotostacja.pl/Archer/2.jpg
https://fotostacja.pl/Archer/3.jpg
Sensors from Archer are visible. They are discovered : VFR, RSSI, RXBt, A2, Alt, VSpd even when S.Port is not connected to telem port. So maybe this receiver is in F.Port mode ?

9

Your GND Cable is connected to AIN2 instead of “-”.

If you move it to “-” (GND = First port on the left of the Archer GR8) than everything should work.

1 Like
10

I changed the GND to 1 correct pin but it didn’t help

11

I also changed options of receiver Turn OFF Fport 2 and F.port 1 doesn’t help…

12

Beside Open tx (2.3.11) which is installed on my Horus and Yaapo telemetry script (1.8.1) do I have to install something more on my transmitter ?

13

Theoretically you dont need the external converter with Cube Orange, and I would try:
SERIALx_PROTOCOL,10
SERIALx_OPTIONS,4
or
SERIALx_OPTIONS,7

14

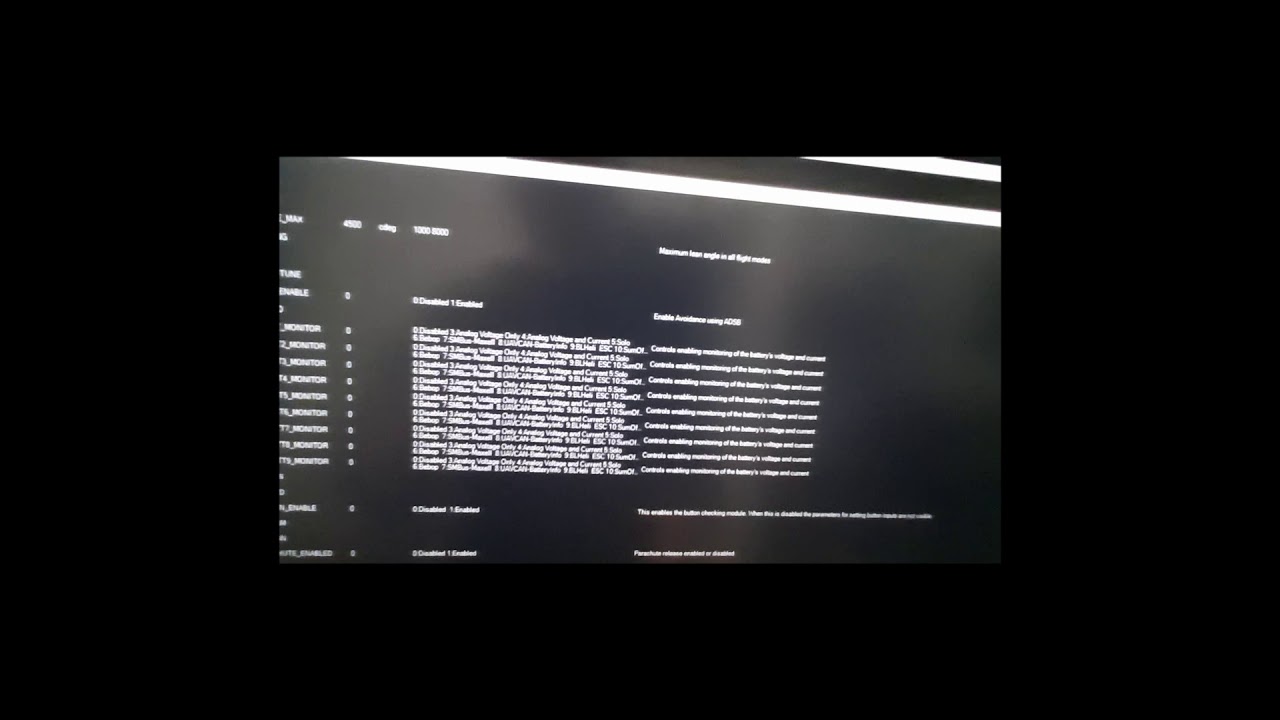

Didn’t help. Please watch maybe I am doing something wrong:

15

Hi is there anyone who has yaapo telemetry on this new Archer receivers by S.Port or F.Port ?

16

I get the telemetry but only by F.Port without special inverter cable. I just connected cable from S.Port to Telem1 and set:

SERIAL1_PROTOCOL = 23
SERIAL1_OPTIONS = 7
RSSI_TYPE = 3
RC_OPTIONS= 8
I had to also upgrade Arducopter firmware in my Cube Orange to 4.1.0-FIRMWARE_VERSION_TYPE_DEV
I also set in GR8 options FPort and Fport2=enable
SERIAL4_PROTOCOL=2

17

I found that if I set on other SERIALs PROTOCOL=10 Fport telemetry stop to work.
Other SERIALS must be set to something different than:
Passthrough FrSky Telemetry Protocol
Is that normal ?

18

I finally also found solution to connect Cube Orange by s.Port and special aliexpress cable. Everything works on settings:
SERIAL1_PROTOCOL=10
SERIAL1_OPTIONS=0
but others Serial protocols can not be set to=10
Only one SERIALx_PROTOCOL can be set to 10
Also in Archer GR8 Receiver Fport and Fport2 should be disabled in options.
