Sharing experiences on HEAVY QUAD 12s 32"

Hi all,

I’am adrien from Réunion Island in the indian ocean. I’am a drone pilot here since 10 years and instructor since last year.

I work mainly for the film industry with dji products but this year is special ! I come back to Pixhawk for a heavy lift quadcopter to help fighting pests in the high lands of the island (rats). (i started my first ever build on a arducopter back in 2010).

The project is to fly mission with a heavy lift drone that carries a custom drop system and spread specific biocid on large area. So far, they use slingshot for remote area without being able to cover the whole zone.

So, i’d like to gather information about large heavy copters and benefit from your experience if you agree to give some advices. I will keep you up to date with the project and answer questions whenever it’s possible.

The setup (Quad) :

  • Gryphon 1400 super frame
  • Pixhawk 2.1 Hex black cube
  • 4x Tmotor U13ii - Flame 180A - G32x11
  • MAUCH electrical accessories
  • 12s - 2x 2x16 000mAh GenAce Tattu
  • FutabaT14sg

So far, i only have the controler and mounted it on a X8 900mm octocopter frame in order to familiarize with the tuning. First flight was good, very stable flight but need to tune ! Tried a full autotune but did not finish because of lipo capacity.

I’ll go soon fly an autotune with specific axis.

I’d be very thankful for your help.

Thanks.

Adrien

Hello Adrien,

I’ve been flying a large 1400mm 12S Hybrid system for some time and they can be difficult to get stable. You will find they are quite different from flying a 900mm frame, although it is good that you are getting familiar with the tuning process on a smaller frame.
What I would make sure to do is follow the tuning guide https://ardupilot.org/copter/docs/tuning-process-instructions.html
Using that guide should get you stable enough flight to conduct an auto tune, you definitely won’t want to fly around using the default filter values.
Auto tune also might take a couple tries to get values you like on a larger frame, we had some issues with ours but it is flying well now. Your hardware selection looks good, T-motor and Mauch haven’t let me down yet. Although if you have the room and weight for it why not go for 2x 2x22 000 mAh Tattu for some longer endurance

If you need help with the drop system, WWF is interested in collaborating with other wildlife management projects and this is an ArduPilot based system:


I can give you some contact information if you are interested

I jake,

Thanks for reply. FIrst, you’r right, i’ll take the time to be at ease with tuning on the small frame knowing that it can be really different on the big one. That’s the reason of this topic :slight_smile:
And i’am reading this exact section for the third time now !

We decided to go on smaller lipos because of two reasons. FIrst one is the weight as we don’t want to exceed 25kgs to stay into a legal limits without having to ask for special permit here in france.
Second is that we calculate the number of drops and flights to cover a certain area and longer endurance doesn’t help here has we have to come back to the base to refill the drop system.

Adrien

Hi Craig,

Very interesting ! Thanks a lot !

I’am only working on the vehicle and an engineer is working on the drop system. I will undoubtly mention this to the team as it can lead to futur collaboration.

I’ll let you know.

Have a good day !

Adrien

Bonjour @Adrien_RunOI ,

If you want to save time and get a ready to work <25kg ready to fly copter you can contact me. We produce an heavy lifter quad that is already used by clients in S2 scenarii (agriculture) and can carry up to 10kg payload. It reach 40 minutes flight time with ~5kg payload.

A bientôt,
Julien

Hi Julien,

We have already bought the setup, waiting for it to be delivered, i’ll start the building and tuning as soon as possible.

If you have any advices, they’r welcome.

You guys at Abot build remote motor shut down system right ?

Adrien

Yes, we patented it :wink:

You can contact us directly on our website :

Best,
Julien

OK, your website doesn’t display any information about wether your drone or your remote shut down system.

A.

Yes, we do not sell it on the shop

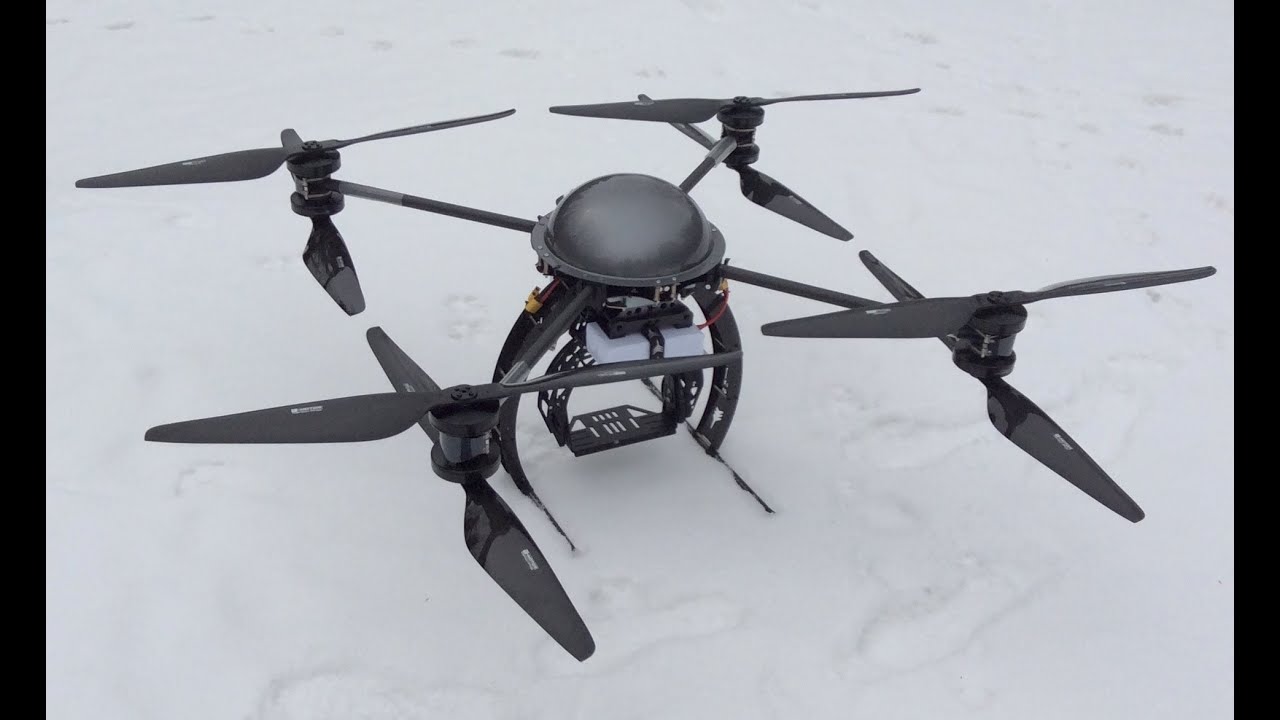

We built our first large drone back in 2014,

Issues you must be aware of when building and flying drones with large diameter propellers.

#1 is stability as was mentioned before.
It is difficult to dial in a large diameter propeller drone because of the Moment of Inertia of large diameter propellers. They do not want to change speed, either faster or slower.
Drones fly and are stable because they can rapidly adjust the speed of the rotation of each propeller quickly. Large diameter propellers do not want to change speed. Its just physics.
My advice has always been if you want a Heavy Lift Copter, then use a single rotor, not a multirotor, and I sell multirotors. Single rotor systems can react quickly even with 6ft diameter rotors because the rotor does not change speed, just pitch.

#2 Wind, because the propellers do not react quickly, the drone will be unstable in high winds.
The large propellers also act as large areas for the wind to grab your craft and flip it around.
It does not matter how big the drone is, wind will affect it. Just think about the very heavy transport truck on the highway getting blown around and the small car is fine.

Best of luck, you will need it :slight_smile:

Jeff

Hi Adrien,
if you have issues completing auto tune due to battery capacity, you can split the tuning process in the three axis. This can be done selectively in the parameters before each flight and works really well in my experience.

Hope this helps: spreadsheet created from the new tuning guide, plug in your props in inches and number of Lipo cells. Be sure to check the values it produces actually make sense and suit your craft.
These parameters are just a starting point before Autotune - you should also have fully read and understood the tuning guide.

Download and check it out - feel free to provide feedback.

2 Likes

Hello,
thank you this excel file it’s a good start point and really useful.
Maybe in the futur a function like that could be directly integrated in Mission Planner @Michael_Oborne like a wizard or a first setup pop-up?

Hello,
Thanks Jeff, i appreciate your feedback.
I’am so far studying the tuning on my X8 900mm 16" and it goes well.

Before we fly the 32", i’ll make sure i have a full undeerstanding of physics and parameters.

I’ll let you know.

A.

Hi Camty,

Indeed, it’s what we did but did not succeed to finish the autotune.

So based on first results we start manual tuning and got pretty good results. So far, the copter is stable and react well to inputs.

My problem today is keeping still in “postiion hold” flight mode.

Thanks.

Hi Shawn,

Thanks a lot, i looked at the document and compare it to my personnal parameters based on the reading of diagrams. My values are really close to the ones giving by your spreadsheets.

It’s a good tool to prepare for tuning and checks basics parameters.

This morning, i modifed my parameters to fit to the one produced by the spreadsheet and it flex really nice.

Thanks for the work.

This morning at the field !

IMG_5393 IMG_5394

I have good reaction to inputs, the copter is stable and stiff but its “position Hold” flight mode makes it wander around its way point.

I don’t konw yet which parameters i have to tune in order to make it solid and precise on its GPS point.

Any advices ?

Tuning was completed manually and need to be fine ajusted but so far, i’am happy.

A.

The type of wandering can help you determine the cause.
It might not be the Parameters.
If the compass is not working perfectly the craft will try to correct is incorrect position and go in the wrong direction, then make a correction again and miss the point where it was suppose to be.

This is called Toilet Bowling. So watch the wandering and see if it is going around a center point, like being flushed down the toilet.

Check over your craft for any sources of magnetism. Use a cheap pocket compass to check for anything magnetic close to the compass. Once I found a steel bolt ( should not have been used) that had gotten magnetized that was close to the compass. When you are checking for magnetic issues, have the craft powered up. Items like Torroids can create fields that could cause issues. I have also found a voltage warning device that when the alarm went off, the speaker created a magnetic field that was measurable next to the compass.

It’s important to do the Compass/Motor calibration, and also check logs for vibrations.
